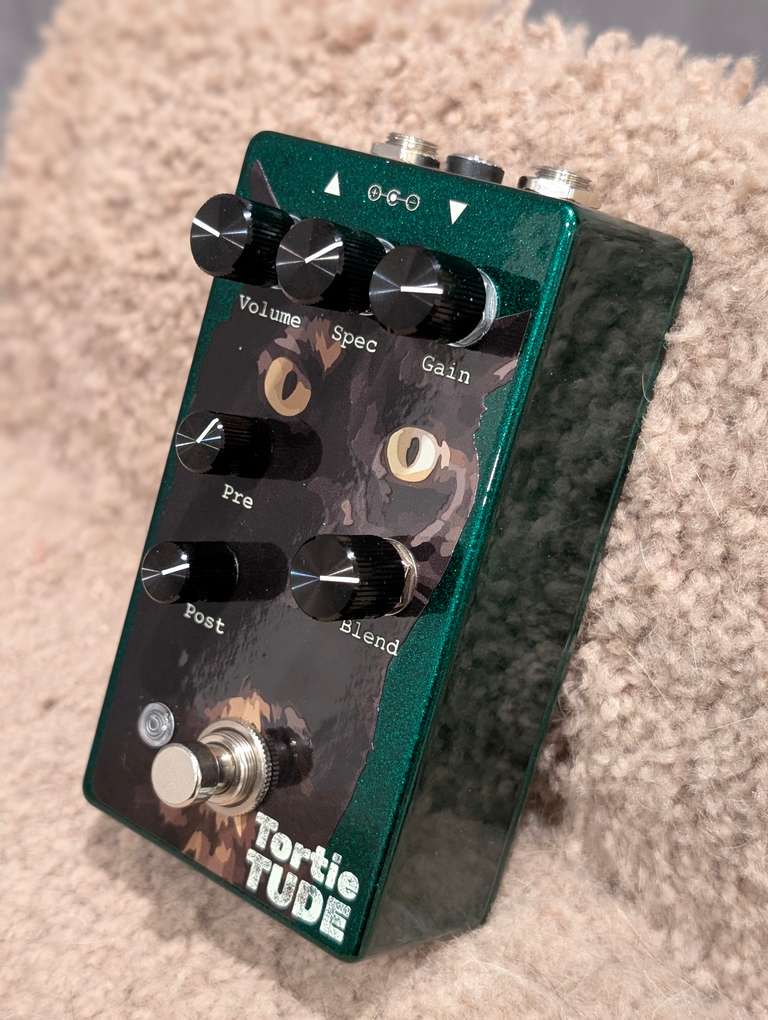

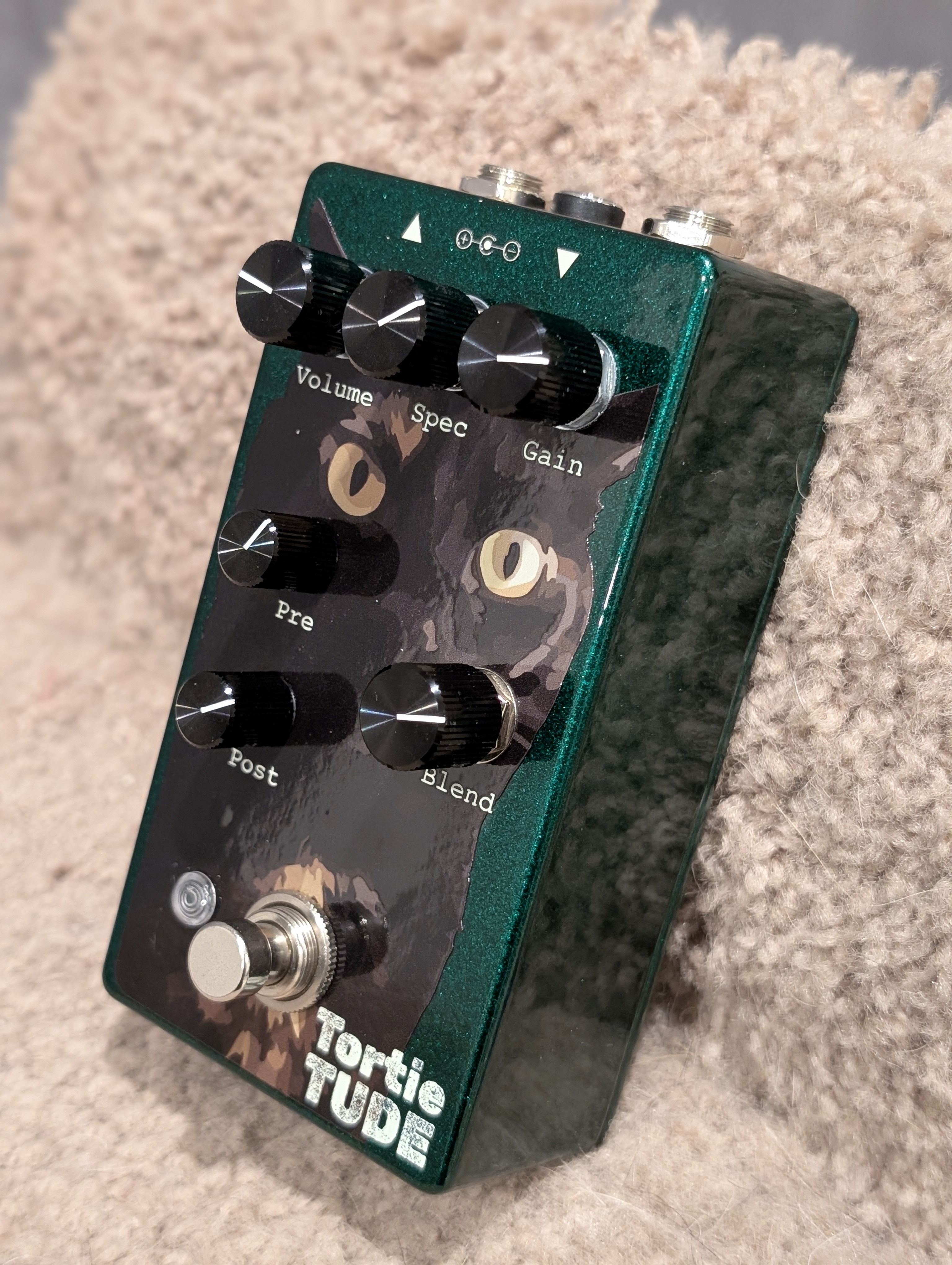

Tortie TUDE

Mid focused over drive with Chonk

In Production!

Sound

The Tortie Tude is a low to mid gain overdrive pedal inspired by your green favorites, but without the hissing and hair balls. This pedal can sunbathe in the mix, or poke through with a single claw.

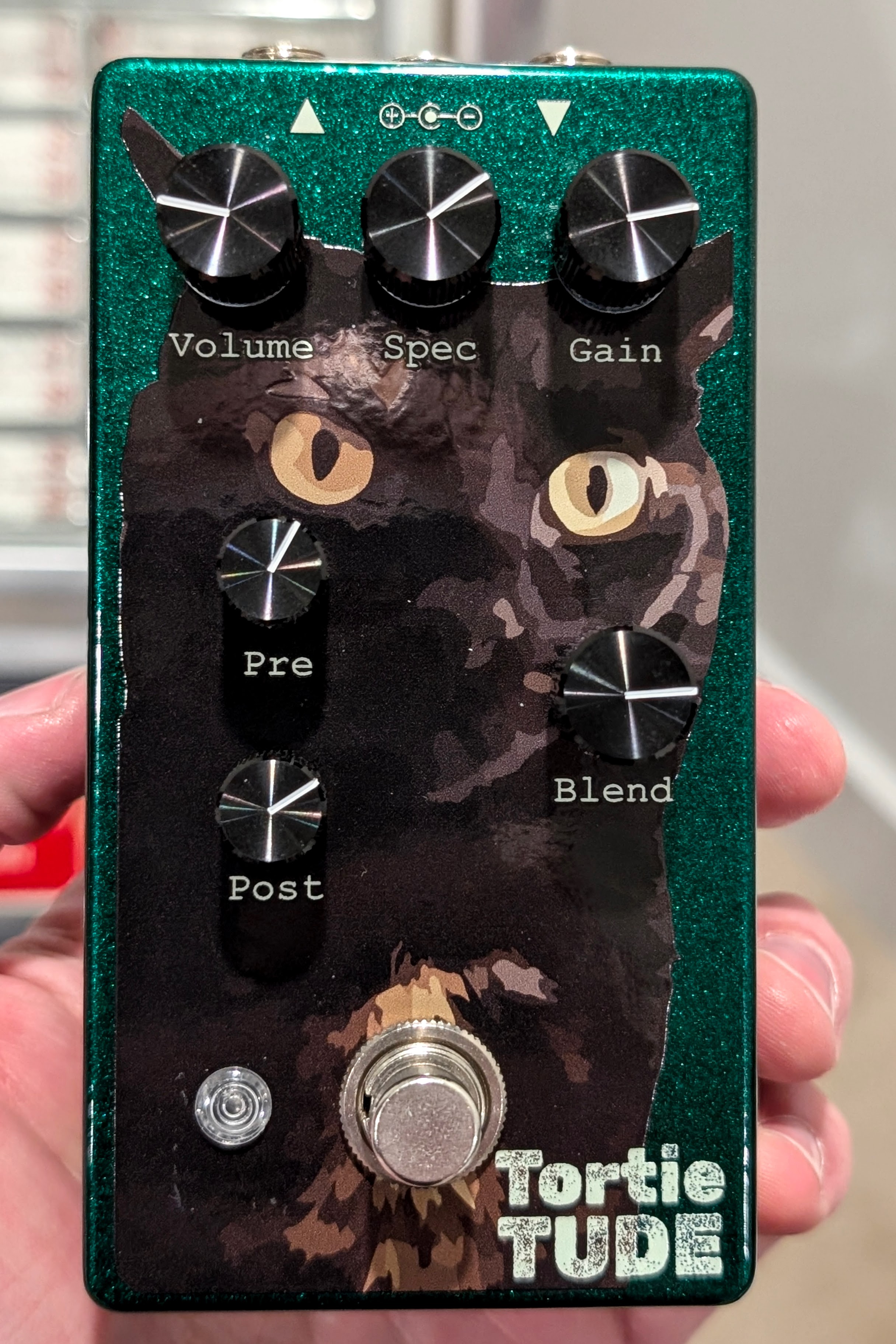

Controls

What makes the Tortie Tude different from it's ancestors is the amount of mid shaping control it provides. The filters can be adjusted to provide an acute mid bump at one of four different frequencies, or to create a medium to wide band boost across the full mid range. The **spec control can then be used to bring back some low mids and highs.

• Volume loudness of the output level.
• Gain level of the signal into the clipping amplifier feedback loop.
• Spec controls the emphasis of the low mids (250Hz) and highs (2kHz) in the spectrum
• Pre selects the high pass filter frequency in the gain stage feedback loop. (146Hz, 480Hz, 710Hz, 1kHz)
• Post selects the low pass filter frequency after the clipping stage. (480Hz, 720Hz, 1.6kHz, 3.4kHz)
• Blend mixes a buffered clean signal to regain clarity.

Example Settings

Scube Treamer

• Gain: 30%
• Spec: 25%
• Pre: position 3 (710Hz)
• Post: position 2 (720Hz)
• Blend: 0%

Flumes

• Gain: 100%
• Spec: 50%
• Pre: position 2 (480Hz)
• Post: position 3 (1.6zHz)
• Blend: 0%

Mobles PBR-1

• Gain: 20%
• Spec: 60%
• Pre: position 1 (146Hz)
• Post: position 3 (1.6kHz)
• Blend: 0%

Bass 5D-1

• Gain: 30%
• Spec: 80%
• Pre: position 3 (710Hz)
• Post: position 3 (1.6kHz)
• Blend: 0%

Djent Djent Djent ... Dject Djent ... Djent Djent Djent

• Gain: 10%
• Spec: 90%
• Pre: position 4 (1kHz)
• Post: position 4 (3.4kHz)
• Blend: 10%
